VERTICAL PANEL SAW Mod.CPME-2B

Special for V-Grooving of Alucobond Panels mm.4000x2000 (2100)

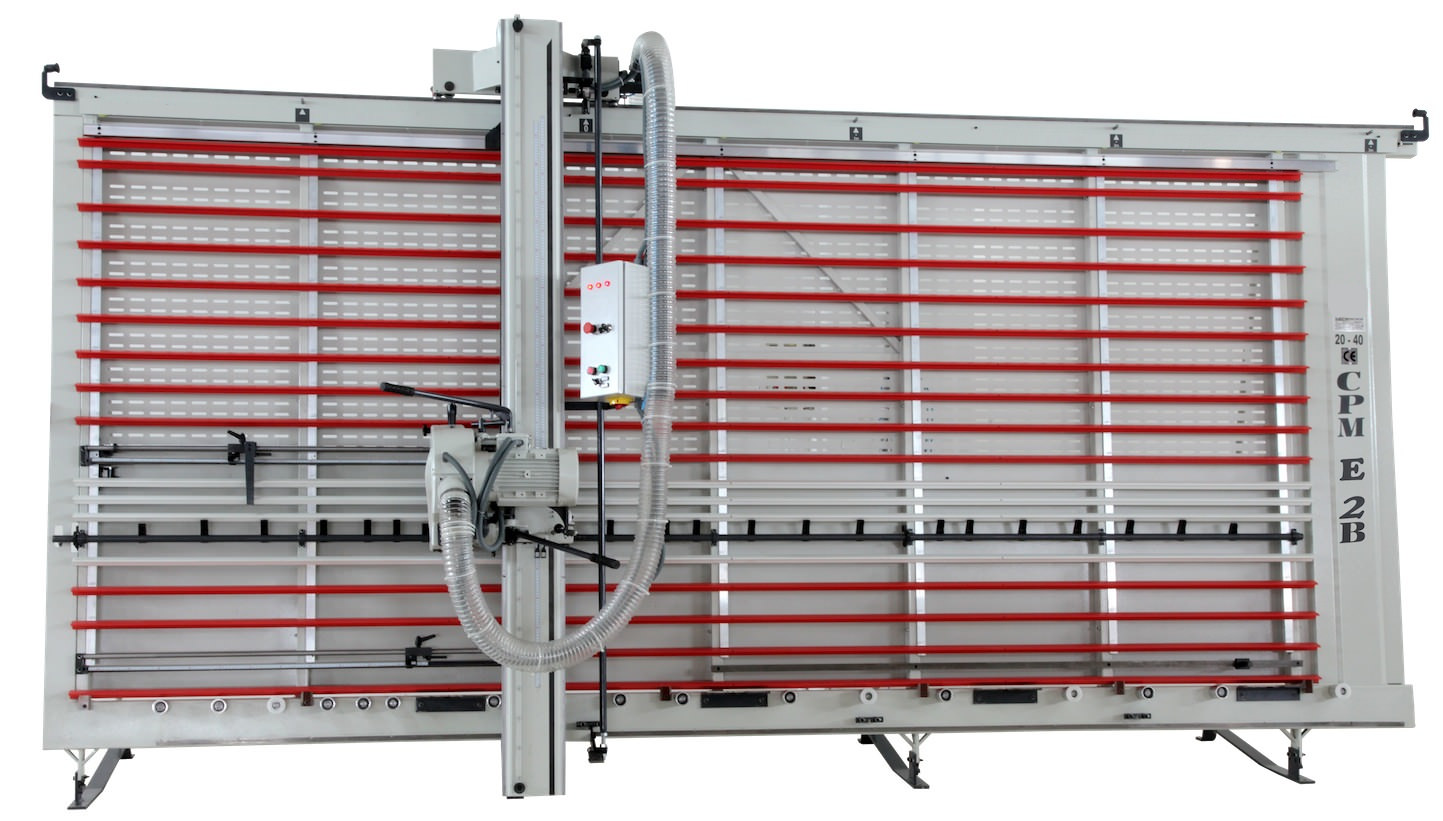

VERTICAL PANEL SAW MAKK Mod.CPME-2B (CE).
Special for V-Grooving of Alucobond Panels.
Patented System to Pass from Cutting to V-Grooving (Milling) in 1 second.
Automatic movable table. Cutting panels mm. 4000×2000 (2100).
Machine for cutting and milling Alucobond-composite panels either in vertical or in horizontal, for any cutting need, with the best quality/price ratio on the market.

For cutting panels either in vertical or in horizontal, made of:
– Sandwich-type composite panels (Alucobond, Etalbond, Reynebond, Dibond, etc..)
– Chipboard
– Ennobled chipboard
– Multilayer
– Massive wood
– MDF
– Plexiglass
– Polycarbonate
– Plastic materials

Alucobond Panels, Pannelli, Panneaux, Paneles

  • Completely welded frame, with panel support table with PVC-profiled listels, that can be moved automatically in order to avoid the contact with the circular blade in horizontal cuts.
  • Patented System to Pass from Cutting to V-Grooving (Milling) in 1 second.
  • Manual deplacement of the upright through the blade group to make vertical and horizontal cuts by means of manual lever.
  • Manual governor of panel cutting depth.
  • Automatic movable table, with pneumatic operation.
  • Tilting device for support of the small pieces to be cut.
  • Mechanical positioners for horizontal cuts.
  • Nr. 2 wings for vertical cuts.
  • Lower panel supports with metal wheels.
  • Kit : angular cuts device.
  • Safety devices.
  • Instruction manual and service keys.
  • Circular blade
  • V-Grooving V-90° milling cutter

Technical Data:
– Movable table: Automatic
– Motor power: 4 HP
– Electric consumption: 3 kW
– Rotation speed: 3000 r.p.m.
– Rotation speed of the circular blade: 5800 r.p.m.
– Rotation speed of the V-Grooving milling cutter: 5800 r.p.m.
– Max. cutting height: 2000 mm
– Max. cutting length: 4000 mm
– Max. cutting thickness: 30 mm
– Circular blade: mm.230x30x3,2 Z=62 HM
– V-Grooving V-90° milling cutter: mm.200×30 Z=10 HM (HM interchangeable little knives)
– Overall dimensions (L x H x W): 5000 mm x 2980 mm x 1150 mm
– Packaging dimensions: frame (L x H x W): 5000 mm x 2500 mm x 450 mm
– Packaging dimensions: upright (L x H x W): 2500 mm x 1100 mm x 900 mm
– Total weight: 665 Kg.

On Request:
– Increased horizontal cutting length up to mm. 8000
– V-Grooving “V” 135° milling cutter
– V-Grooving “U” milling cutter
– Cutting height mm. 2100
– Motor HP 5,5
– Special voltage
